High-Performance Suspension Centrifugal Blower The Perfect Choice for Your Business

Negotiable
Price
High-Performance Suspension Centrifugal Blower The Perfect Choice for Your Business
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Industrial
Outlet Diameter: DN150-DN300 Mm
Power Source: Electric
Dimensions: 1300x800x1230 Mm
Flow Range: 5-500m³/min
Boost: 5-10Kpa
Frequency Conversion: Yes
Basic Infomation
Place of Origin: China
Brand Name: Aipu
Certification: CE,CCC,SABS,TUV,RoHS
Model Number: ZGK22
Payment & Shipping Terms
Packaging Details: Standard Export Package
Delivery Time: 6-8 workdays
Product Description

Product Description:

Foil Bearing High-speed Centrifugal Blowers is a high-efh.ciency,energy-saving,green and environmentally friendlyproduct, its mechanical structure is simple, the moving partsare few, the control robustness is good, and the maintenanceis convenient. It adopts automotive-grade oil-free andhigh-reliability dynamic pressure foil bearing, which has nofriction and small mechanical loss during operation. Usingadvanced permanent magnet synchronous motortechnology, the maximum speed can reach 95000rpm, and itonly takes 5s to run at full speed.The motor effciency is ashigh as 97%, which meets the two-stage energy effciencystandard.


The high-effciency ternary flow impeller used in the FoilBearing High-speed Centrifugal Blowers breaks through thekey technology of low specifc speed design and has higheffciency. The integrated special design of the main enginemakes the noise less than 75dB(A) and the vibration less than12um. It adopts stepless adjustment, and the blower can startand stop quickly, and the number of continuous starts andstops exceeds 200,000 times.



Foll Bearing Technology



Foil bearing has physical contact between therotor and the bearing before starting, therelative movement of the rotor and the bearinggenerates air pressure when starting, when therotor rotates, the speed of the air around therotor can be converted into pressure energy, andthe air pressure makes the rotor float when therotor reaches a certain rotation speed and playsa lubricatingrole. Foil bearing technologyeffectively solves theproblems of lowefficiency, short life, and the need forregularmaintenance and lubrication of the traditiona!mechanical support transmission system.

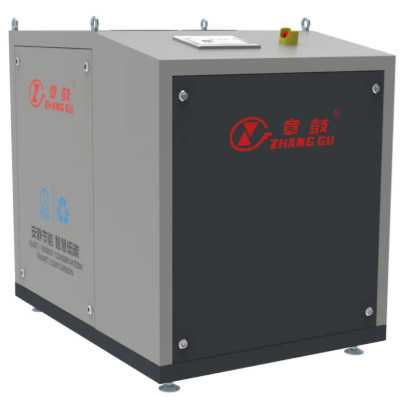

High-Performance Suspension Centrifugal Blower The Perfect Choice for Your Business 0



Features:

  • Product Name: Suspension Centrifugal Blower
  • Motor Type: Permanent Magnet
  • Noise Level: ≤85 DB(A)
  • Weight: 310 Kg
  • Oil Filling Volume: No oil
  • Dimensions: 1300x800x1230 Mm
  • Other Names: Air suspension centrifugal blower, air suspension fan, suspension high-speed centrifugal blower, air suspension blower

  •

Technical Parameters:

Air Flow (m/min):1atm,20℃,65%RH, density=12kg/m3, Tolerance=+5%
model number Outlet pressure (bar) power Weight Outlet calibre Dimension (mm)
0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.2 kw kg PN1.0 MPa elder width height
Inlet Flow(m³/min)
ZGK15 24 17 14 13 10 / / / / 15 300 DN150 1300 800 1230
ZGK22 36 29 24 21 18 16 / / / 22 310
ZGK30 49 39 33 28 25 22 / / / 30 330
ZGK37 62 48 41 35 31 28 25 22 19 37 350
ZGK45 78 62 51 45 31 34 32 28 23 45 550 DN200 1500 1100 1580
ZGK55 94 76 60 54 47 40 38 34 28 55 630
ZGK75 124 95 76 69 63 55 49 45 37 75 650
ZGK90 157 120 95 86 79 69 62 56 46 90 830 DN300 1500 1100 1580
ZGK110 190 150 115 104 93 85 72 67 57 11 880
ZGK132 221 170 136 122 108 99 86 79 67 132 930
ZGK150 252 190 156 140 122 112 9 90 77 150 1450 DN300 1800 1500 2080
ZGK185 314 230 190 171 155 136 124 112 91 185 1720
ZGK225 380 290 228 208 183 164 145 132 111 225 2140 DN400 2300 1700 2140
ZGK300 504 378 312 276 243 220 198 181 150 300 2320

When the atmospheric conditions and medium are varied,the relative performance conversion calculation will be different,we can redesigned in accordance wth the requirement of users to adape to different working condition. There are two cooling methods for air suspension centrifugal blower: self-circulating water cooling and forced air cooling. If you have special requirements on the cooling mode, please tell us in advance.

 High-Performance Suspension Centrifugal Blower The Perfect Choice for Your Business 1

Applications:

It is suitable for sewage treatment industry, petrochemical industry, food and drug industry, textile industry, metallurgy industry, cement and construction materials industry, printing and dyeing industry and other industries.





Market Distribution



We have 42 offices throughout the country, in addition to Taiwan Province, 33 provinces in the country's ad-ministrative regions have a sound sales and service network. We can provide you with pre-sale, in-sale and after-sales service in a timely and convenient manner, understand your needs, and constantly improve the service and quality system while meeting the customized needs of customers.



Support and Services:

The  Suspension Centrifugal Blower product comes with comprehensive technical support and services to ensure its optimal performance and longevity. Our technical support team is available to assist with any installation, operation, or maintenance questions or issues that may arise.

We also offer proactive maintenance services to keep your blower operating at peak efficiency and minimize downtime. This includes regular inspections, cleaning, and part replacements as needed.

In addition, our team can provide training and education on proper operation and maintenance to help you get the most out of your investment.

Our goal is to provide you with reliable and efficient vacuum pump solutions, and our technical support and services are an integral part of achieving that goal.



Packing and Shipping:

Product Packaging:

The Suspension Centrifugal Blower is packaged in a sturdy wooden case to ensure safe and secure transportation. The blower is also wrapped in plastic and foam for added protection against any potential damage during shipping.

Shipping:

We offer worldwide shipping for our Suspension Centrifugal Blower. The shipping cost will depend on the destination and the weight of the package. We use reliable and efficient shipping carriers to ensure timely delivery of the product to our customers.



FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is Aipu.

Q: Where is this product made?

A: This product is made in China.

Q: What certifications does this product have?

A: This product has CE, CCC, SABS, TUV, and RoHS certifications.

Q: Is the price negotiable?

A: Yes, the price of this product is negotiable.

Q: How is this product packaged and delivered?

A: This product is packaged in a standard export package and delivery time is 6-8 workdays.
