Discover the Power of Magnetic Levitation Blower and High-Efficiency Solution for Industrial Applications

Product Description:

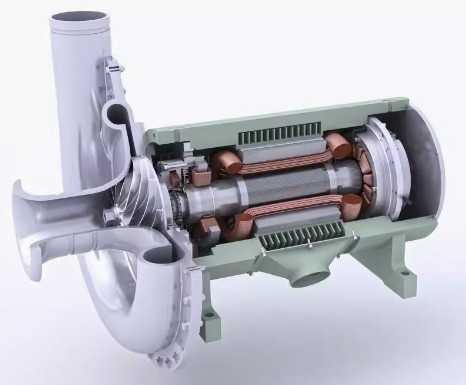

Magnetic Suspension Centrifugal Blower is a product of high efficiency,energy saving and environment-friendly that is directly mounted by high-speed PMSM and ternary flow centrifugal impeller. The shaft vibration is timely supervised by build-in displacement sensor. The collected data will be input to the Magnetic Suspension Bearing Controller for computa- tion to generate the control current. This current will be input to the windings of Magnetic Suspension Bearing to generate the magnetic force for suspension.
PMSM generates frequency controllable current via inverter,this current will be input to the motor stator to generate rotaion magnetic field to drive the shaft rotating at high speed.
The impeller driven by high-speed rotating shaft will take the air from volute casing inlet,and will be forced by impeller and volute casing guidance to generate flow velocity and pressure.Then will be discharged from volute casing outlet to complete the blowing process.

Features:

• Energy saving and efficient

    ​Ternary flow impeller is directly coupled with high-speed PMSM;
     Save more than 30% energy than Roots Blower; Save more than 20% energy than Multi-stage Centrifugal Blower;
     Save more than 10% energy than Single Stage High Speed Centrifugal Blower.

• Low Noise

   With the self-balancing technology, the vibration level of Magnetic bearing is lower than traditional bearings,and there is no friction,                Adopting the active vibration damping design,the blower can operate smoothly of less vibration, and the noise of the blower is around          80dB(A).

• Maintenance Free

    ​Integrated design,skid mounted structure,convenient installa- tion,one key to start and stop the blower.No need for mechanical                     maintenance during daily operation,only to replace the filter.

• Intelligent Control

     With PLC+GPRS/3G/4G, we can real time monitor the operation status of the Blower and control flow,air pressure and speed by                    intelligently or manually mode.In case of failure, it can also be repaired and debugged remotely.

Technical Parameters:

When the use conditions of the blower and the above table does not match, the need for performance conversion, our company can be non-standard design according to user requirements to meet the specific needs of users of various working conditions.

Applications:

Suitable for sewage treatment industry, leather manufacturing industry, petrochemical ind puand paper industry, thermoelectric industry, metallurgical industry, pharmaceutical industry, coal chemical industry, textile industry, printing and dyeing industry, food industry, cement building materials industry, etc.

Core Technology with independent intellectual property right
-—High efficiecry PMSM:

High speed PMSM (high efficiency,high power density) with the independent intellectual property right can achieve a max- imum speed of 60000rpm and a max power of 1000kW, the motor efficiency is better than 97%.

Core Technology with independent intellectual property right

-Ternary flow theory Impeller design and Aerodynamic flow field technology

The ternary flow theory impeller (with the optimized technolo- gy on strength,aerodynamics and flow field) has the features of high efficiency (the turbine efficiency is 94.5%,the equal-entro- py efficiency is as high as 84%) achieves the advanced Interna- tional level.

Packing and Shipping:

Product Packaging:

• The Magnetic Levitation Blower  will be carefully packed in a sturdy cardboard box.
• The components will be placed in custom foam inserts to prevent any movement or damage during shipping.
• An instruction manual and warranty information will be included inside the box.

Shipping:

• The product will be shipped via a reliable carrier service.
• Customers will receive a tracking number for their shipment.
• The estimated delivery time will be provided to customers upon purchase.
• International shipping is available, but additional fees may apply.

FAQ:

What is the brand name of the Magnetic Levitation Blower?

Aipu is the brand name of Magnetic Levitation Blower.

Where is the Magnetic Levitation Blower manufactured?

The Magnetic Levitation Blower is manufactured in China.

What certifications does the Magnetic Levitation Blower have?

The Magnetic Levitation Blower is certified by CE, CCC, SABS, TUV, and RoHS.

What is the price of the Magnetic Levitation Blower?

The price of the Magnetic Levitation Blower is negotiable.

What are the packaging details and delivery time for the Magnetic Levitation Blower?

The Magnetic Levitation Blower comes with a standard export package and has a delivery time of 6-8 workdays.
