An air compressor that achieves ultimate energy conservation and stable pressure

1PC
MOQ
negotiable
Price
An air compressor that achieves ultimate energy conservation and stable pressure
Features Gallery Product Description Request A Quote
Features
Specifications
Exhaust Pressure: 0.65-0.9Mpa
Displacement: 1.0-24m³/min
Type: BMVF Micro Oil Screw Air Compressor
Power Source: Electric
Motor Power: 7.5-132kW
Basic Infomation
Place of Origin: China
Brand Name: Aipu
Model Number: BK/BKX/BMVF/GVT/PVGX
Payment & Shipping Terms
Packaging Details: container
Delivery Time: 10
Payment Terms: tt
Supply Ability: 10000t/y
Product Description

Product Description:

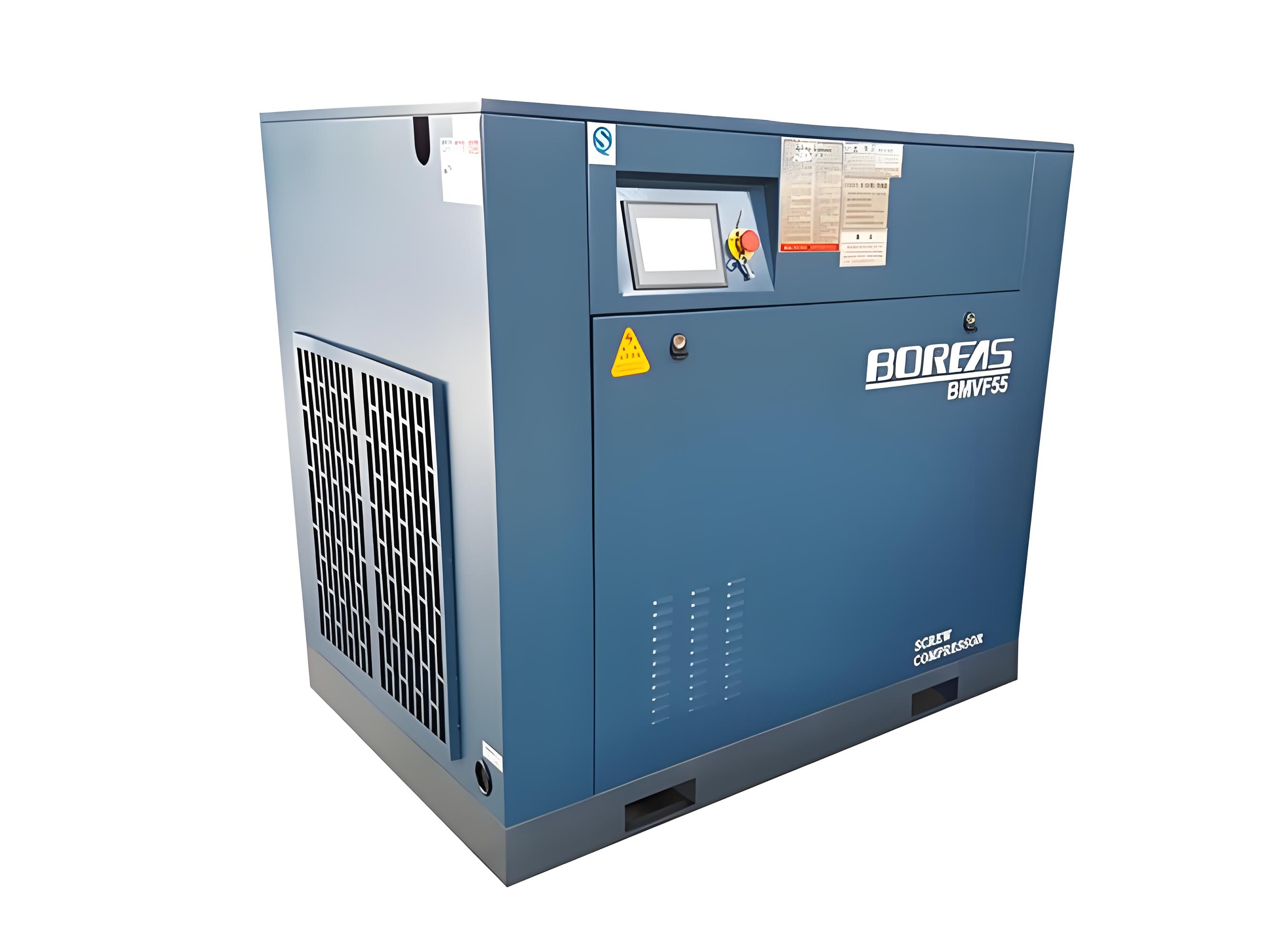

The BMVF series is a permanent magnet variable frequency screw air compressor that integrates cutting-edge technology, designed specifically for mid to high end industrial users who pursue ultimate energy efficiency, stability, reliability, and low operating costs. It is not only an air power source, but also an intelligent solution for you to achieve energy conservation, reduce consumption, and enhance production competitiveness.

Core advantages:

  • Ultimate energy saving: Using efficient permanent magnet synchronous motors and advanced variable frequency drive technology, it can save up to 30% -40% more energy than ordinary frequency air compressors.
  • Stable and reliable: Selected core components and optimized system design ensure long-term stable operation of equipment under harsh working conditions, reducing unplanned downtime.
  • Silent and environmentally friendly: The box design combined with internal noise reduction technology significantly reduces operating noise, creating a more comfortable working environment.
  • Intelligent control: Humanized intelligent controller, real-time monitoring, intelligent adjustment and remote management, allowing device management to be fully mastered.
  • Constant pressure gas supply: The pressure is stable and the fluctuation range can be controlled within ± 0.1 bar, providing high-quality and stable gas source for gas equipment.





Detailed description:

1. Core technology: Efficient permanent magnet variable frequency drive system

  • Efficient Permanent Magnet Synchronous Motor (PM Motor): Made of rare earth permanent magnet materials, it does not require excitation current and has an efficiency of up to IE5 ultra-high efficiency level. High starting torque, fast response speed, and excellent efficiency even under partial load.
  • Intelligent frequency conversion control system: According to actual gas demand, the motor speed can be infinitely adjusted to achieve "on-demand gas supply". Completely avoiding energy waste caused by frequent loading and unloading of power frequency air compressors.



2. Excellent performance and reliability

  • Efficient host: adopting a large rotor, low-speed design, optimized profile, high volumetric efficiency, long bearing life, ensuring the compression core is durable and long-lasting.
  • Optimized system design: adopting internal oil and gas pipeline optimization design to reduce pressure loss; Efficient cooling system ensures that the machine operates at optimal temperature, prolonging the life of lubricating oil and components.
  • High quality components: Key components such as intake valves, oil separators, temperature control valves, etc. are all selected from internationally renowned brands to ensure the overall quality of the machine from the source.



3. Intelligent and convenient control experience

  • Large screen intelligent controller: high-definition LCD display screen, which can display all key parameters such as pressure, temperature, current, and operating status in real time.
  • Multi intelligent protection: equipped with multiple safety protection functions such as overload, overheating, phase loss, and overpressure, ensuring human-machine safety.
  • Networking and remote monitoring (optional): Supports IoT functionality, allowing users to remotely monitor device operation status, fault alarms, and energy consumption data through a PC or mobile app, achieving predictive maintenance.



4. Humanized and environmentally friendly design

  • Box type soundproof design: Fully enclosed/semi enclosed box, covered with high-efficiency sound-absorbing materials inside, effectively isolating noise. The operating noise is as low as 62-68 dB (A), far below the national standard of 82 dB (A).
  • Convenient maintenance: The side opening or top opening door panel design provides ample maintenance space, and daily maintenance parts such as oil filters and air filters are within reach, greatly reducing maintenance time.
  • Compact structure: Integrated design, small footprint, convenient for factory layout and installation.



Product Selection Table:

BK series

An air compressor that achieves ultimate energy conservation and stable pressure 0BKX seriesAn air compressor that achieves ultimate energy conservation and stable pressure 1BMVF permanent magnet series

An air compressor that achieves ultimate energy conservation and stable pressure 2GVT permanent magnet series

An air compressor that achieves ultimate energy conservation and stable pressure 3

BK series miningsafety products

An air compressor that achieves ultimate energy conservation and stable pressure 4PVGX twin-screw laser dedicated unit

An air compressor that achieves ultimate energy conservation and stable pressure 5



Applications:

The BMVF series is widely used in industries that have high requirements for compressed air quality, stability, and energy consumption:



  • Automotive manufacturing and parts industry: welding robots, spraying equipment, assembly line tools, material conveying. The change in production pace causes instantaneous fluctuations in gas consumption, and BMVF can accurately match the flow rate, maintain constant pressure, and ensure the quality of welding and spraying.
  • Electronics and semiconductor industry: PCB board cleaning, SMT mounting, component testing, clean room environment. The high requirements for air pressure stability and air cleanliness make the constant pressure characteristics and low oil content output of BMVF crucial.
  • Home appliance and hardware manufacturing: pneumatic ejectors for injection molding machines, stamping equipment, assembly tools. The equipment operates periodically, with a large difference between peak and valley gas consumption. Variable frequency control can significantly reduce no-load energy consumption while ensuring instantaneous peak gas demand.
  • Packaging and Textile Industry: Pneumatic Control of Filling Equipment, Labeling Machines, and Textile Machinery. The frequent start stop of the equipment, coupled with the soft start and fast response capability of BMVF, can reduce the impact on the power grid and equipment wear.



The core value brought to customers:

1.Energy saving: During non full load operation, the energy-saving effect can reach 20% -40%, directly reducing production costs.

2.Constant pressure: Ensure that all pneumatic equipment on the production line operates at the optimal pressure, improving product consistency and qualification rate.

3.Intelligence: Seamless integration with automated control systems.

Support and Services:

Our Micro oil screw air compressor product comes with comprehensive technical support and services to ensure that our customers are satisfied with their purchase. Our team of experts is available to provide assistance with installation, operation, and maintenance of the product. We also offer repair and replacement services for any faulty parts or components. Additionally, we provide training and educational resources to help our customers maximize the performance and lifespan of their Micro oil screw air compressor.



Packing and Shipping:

Product Packaging:
The Micro oil screw air compressor comes in a sturdy cardboard box with the product image and specifications printed on the outside. Inside, the product is securely packaged with foam inserts to prevent any damage during transportation.
Shipping:
We provide transportation services for micro oil screw air compressors worldwide. Our standard shipping time is 3-5 business days. For expedited shipping, please contact our customer service team. We ship via trusted carriers such as UPS, FedEx, and USPS and provide a tracking number for your convenience.



FAQ:

Q: What is the brand name of this product?
A: The brand name of this product is Aipu.
Q: What is the model number of this product?
A: The model number of this product is Micro oil screw air compressor.
Q: Where is this product made?
A: This product is made in China.
Q: Does this product have any certifications?
A: Yes, this product is certified by ce.ul.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1pc.
Q: Is the price of this product negotiable?
A: Yes, the price of this product is negotiable.
Q: What is the packaging details for this product?
A: The packaging details for this product is container.
Q: How long is the delivery time for this product?
A: The delivery time for this product is 10 days.
Q: What are the payment terms for this product?
A: The payment terms for this product is tt.
Q: What is the supply ability of this product?
A: The supply ability of this product is 10000t/y.
