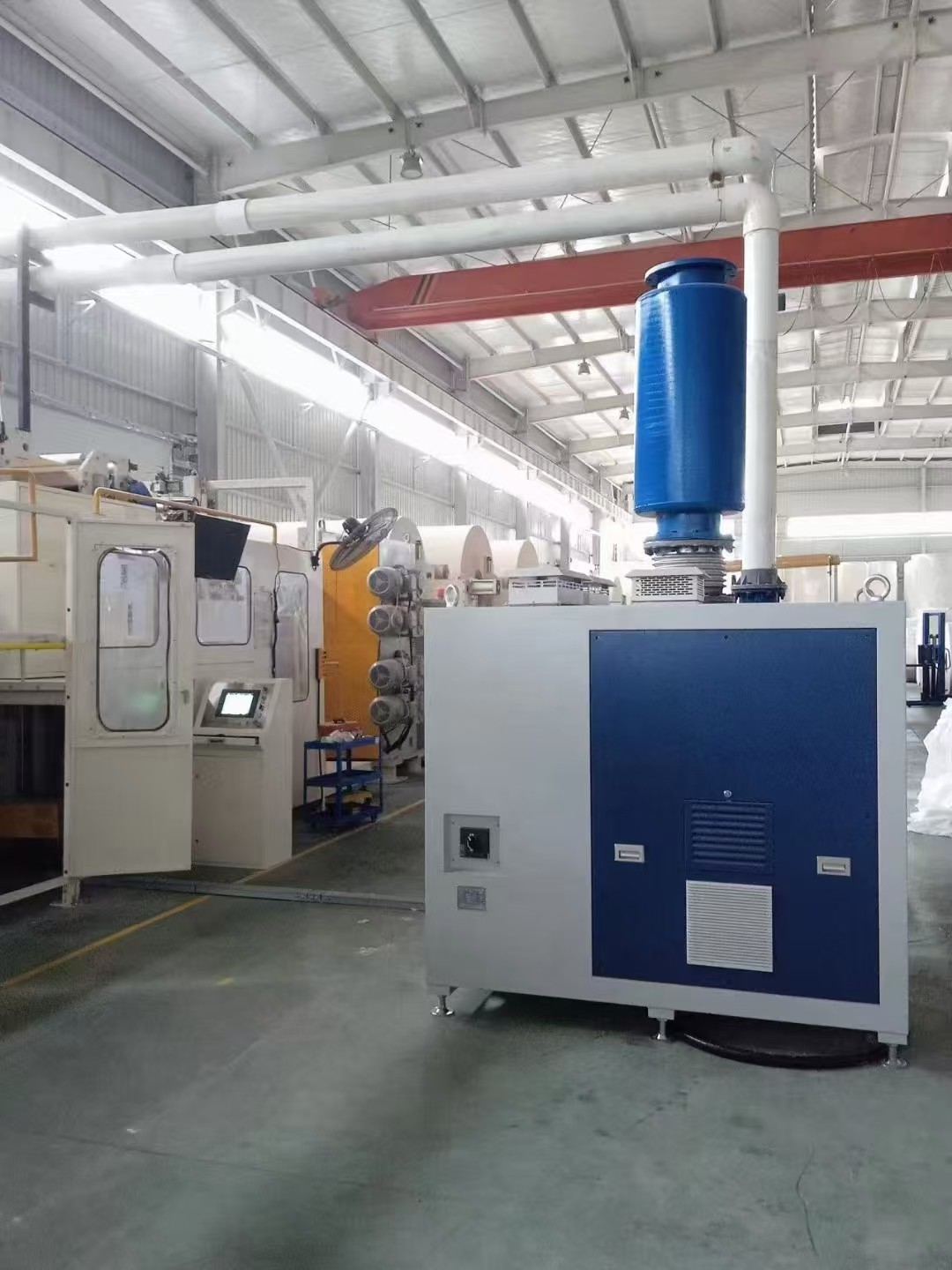

Contactless Magnetic Levitation Pump Zero Emissions Energy Saving and Contamination-Free Vacuum Solution

Product Description

Environmentally Friendly Magnetic Levitation Dry Vacuum Pumps - Zero Emissions, Energy Saving and Carbon Reducing Clean Vacuum Solutions

Key Features:

1. Emission-Free Operation:

   • Completely oil-free and dry vacuum pumping technology
   • Eliminates the need for oil, preventing any potential leaks or emissions

2. Energy-Efficient Design:

   • Optimized motor and drive systems for low power consumption
   • Contributes to reduced operational costs and carbon footprint

3. Magnetic Levitation Technology:

   • Contactless operation with no mechanical wear and tear
   • Ensures long service life and minimized maintenance requirements

4. High Vacuum Performance:

   • Advanced multi-stage turbomolecular design
   • Achieves high vacuum levels down to 10^-9 Torr

5. Clean and Contamination-Free Vacuum:

   • Oil-free operation maintains a clean vacuum environment
   • Ideal for sensitive applications requiring high purity

These environmentally friendly magnetic levitation dry vacuum pumps offer a clean and sustainable vacuum solution, addressing the growing demand for carbon-reducing technologies. Leveraging the latest advancements in vacuum technology, these pumps achieve zero emissions through a completely oil-free and dry pumping design.

By eliminating the need for oil, the risk of potential leaks and contamination is eliminated, ensuring a clean vacuum environment that is ideal for sensitive applications. This oil-free operation also contributes to the overall environmental friendliness of the system, as it prevents the disposal of used oil and the associated carbon footprint.

The energy-efficient design, featuring optimized motor and drive systems, further enhances the sustainability of these magnetic levitation dry vacuum pumps. The reduced power consumption not only leads to lower operating costs but also significantly contributes to the reduction of the overall carbon footprint.

Utilizing magnetic levitation technology, these pumps achieve contactless operation, eliminating mechanical wear and tear. This innovative design approach ensures long service life and minimized maintenance requirements, reducing the resource consumption and environmental impact associated with frequent maintenance and replacement.

Capable of delivering high vacuum performance down to 10^-9 Torr, these environmentally friendly dry vacuum pumps are well-suited for a wide range of applications, including semiconductor manufacturing, scientific research, and industrial processes, where a clean and contamination-free vacuum environment is critical.

Performance Features

Energy saving and High efficiency
Ternary flow lmpeller is directly coupled with high-speed PMSM;
Save more than 30% energy than Water Ring Vacuum Pump,no not need circulating water,
Save more than 20% energy than Multi-stage Centrifugal Vacuum Pump;·
Save more than 10% energy than Single Stage High Speed Centrifugal Vacuum Pump;

Low Noise
With the self-balancing technology, the vibration level of Magnetic bearing is lower than traditionabearings, and there is no friction, Adopting the active vibration damping design, the blower can op
erate smoothly of less vibration.

Maintenance Free
Integrated design, skid mounted structure, convenient installation, one key to start and stop theblower, No need for mechanical maintenance during daily operation, only to replace the filter.

Intelligent Control
With PLC+GPRS/3G/4G, we can real time monitor the operation status of the Blower and controlflow, air pressure and speed by intelligently or manually mode. in case of failure, it can also be
repaired and debugged remotely.

Application

It is suitable for vacuum dehydration,post treatment of origami machine,material conveying,tailgas recovery,etc.

Model Selection of Magnetic Suspension Centrifugal Vacuum Pump

Technology core

Five-degree-of-freedom magnetic suspension bearing technology which have independentintellectual property rights can guarantee the rotor system is suspended by electromagneticforce when the equipment is powered on.The controller ensures that the signal is collectedmore than 10000 times per second and the stable suspension of high-speed rotor.Redundant power systems and spare bearings could provide multiple protection to avoid anydamage due to the sudden power failure or downtime.

Bearing technology

Active Magnetic Bearing Technology is converted from the magnetic Suspension flywheel tech.nology in the field of space satellite. The high performance attitude control and high eficiencyenergy conversion of the satellite are realized from magnetic Suspension flywheel technology,which greatly improves the attitude control and operation level of the satellite and effectivelysolves the problems of low efficiency, short service life, routine maintenance requirement and lu-brication issues on mechanical support transmission system.

First-class lean manufacturing and testing base

We has built laboratories, R & D buildings, processing work-shops, etc., with internationally advanced and China leading high-precision processingequipment.
